"Transmitter Circuit – Reliable Wireless Signal Transmission"

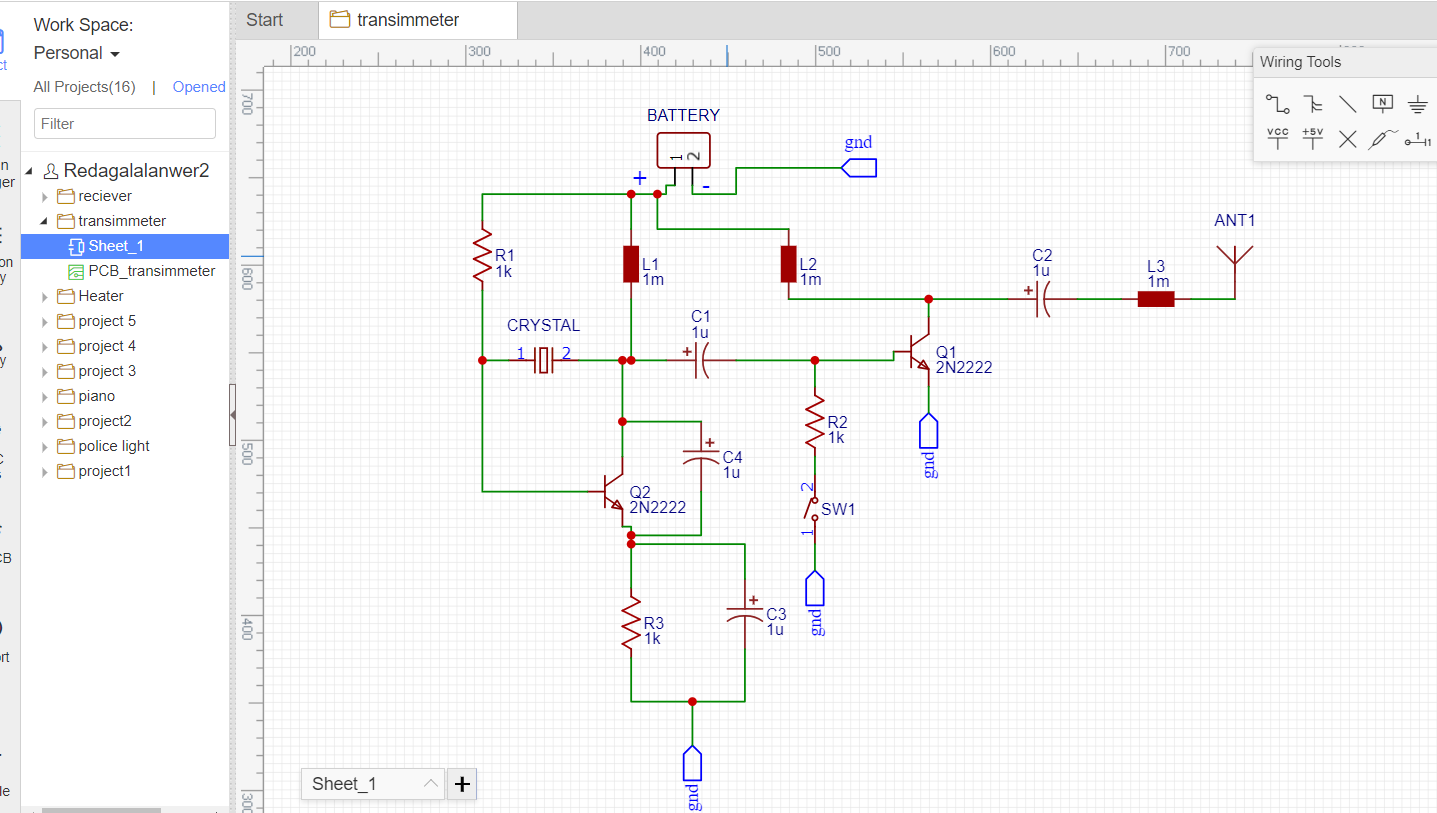

The Transmitter Circuit is the driving force behind wireless communication, designed to generate and send signals with high stability and efficiency. At its core, it features a high-sensitivity antenna that radiates the signal over the air, ensuring reliable coverage and range.

A crystal oscillator provides a precise and stable carrier frequency, guaranteeing that the transmitted signal remains consistent and interference-free. The circuit includes essential capacitors for filtering and smoothing, as well as resistors for current control and biasing of active components.

Powered by a battery pack, the circuit operates with minimal power consumption, making it ideal for portable and remote applications. A tactile switch acts as the control trigger—once pressed, it activates the transmitter, allowing the modulated signal to be sent instantly via the antenna to the paired receiver.

Engineered for performance and durability, this Transmitter Circuit ensures fast, clear, and uninterrupted communication—perfect for remote controls, wireless sensors, and short-range RF systems.

This is more than just a circuit—it’s the voice of your wireless system, built for precision and reliability.
